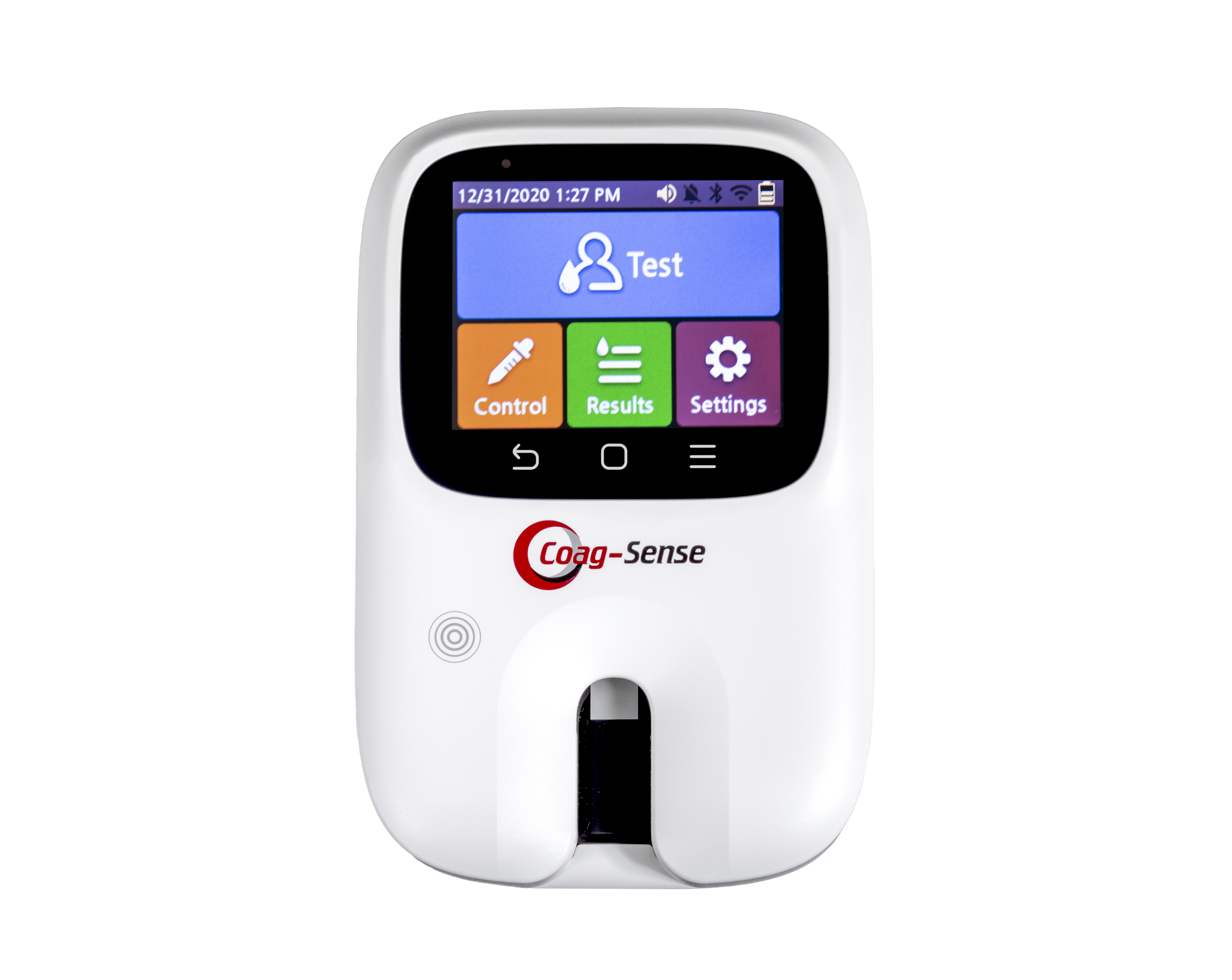

Coag-Sense® PT2 PT/INR Meter - The Gold Standard in Accuracy
The Coag-Sense® PT2 Meter & Coagulation Analyzer provides a precise and accurate way to measure prothrombin time. Its micro-mechanical detection process allows for excellent results with whole blood, plasma controls, and calibrants. This amazing POC system directly detects clotting and displays results in under a minute with a small sample size. With user-friendly features, such as a color touchscreen, it offers wireless and wired connectivity options for easy data sharing. Plus, with its built-in rechargeable battery, it's always ready for use.
Experience The Benefits of Superior Accuracy, Precision and Safety With Coag-Sense® PT2 PT/INR meter
The Coag-Sense® PT2 meter directly measures clot formation, so the time required to perform a test is the actual prothrombin time in seconds. By not using look-up tables or curve fitting algorithms, the Coag-Sense® PT2 meter offers superior accuracy and precise results in less than a minute.
| < 1 | 2.5% | 10-12 μl |
| minute | CVs | sample |
Proven Methodology
- Micro-mechanical detection measures actual clotting time for a real PT measurement.
- Offers gold standard accuracy and precision (<2.5% CV).
- Full reporting range up to 8.0 INR.
- Not susceptible to changes in hemoglobin and hematocrit levels.
- User-friendly color touchscreen with easy instructions.
- Small sample size required, only 10 μl drop of blood.
- Test strips are individually packaged.
- Test strip lot information communicated wirelessly to the meter via NFC chip.
A more direct approach to INR
- The only POC system that directly detects clotting endpoint (emulates the WHO Tilt-Tube method).
- Offers gold standard accuracy and precision (CV 2.5%).
- Determines actual PT time without lookup tables or curve-fitting algorithms.
- Displays PT results in less than 1 minute.
- INR range from 0.8 to 8.0
Simple and accurate sample collection
- Small sample size - just one 10μl drop of blood.
- Sample transfer tubes included.
- Allows stable, accurate transfer of sample to test strip.
- Reduces errors and strip wastage with correct volume delivery.
- Supports proper bloodborne-pathogen control compliance.
Meter Specifications
| Operating Temperature | 65°F to 90°F (18°C to 32°C) |
| Battery | (3.7V, 2350mAh) |
| Altitude | 10,000 ft (3,048 m) above sea level |
| Storage Humidity | 20% to 80% (without condensation) |
| Storage Temperature | 32°F to 122°F (0°C to 50°C) |
| Lithium Battery | Rechargeable Lithium Polymer |
| Memory | Capable of storing up to:
‚2000 patient test results with date and time,
500 control test results with date and time,
1000 Operator accounts |
| Operating Humidity | 10% to 90% (without condensation) |
| Battery Capacity | Fully charged battery (6 hours of charging) can run ~100 tests |
| Power Input | 120V AC Adapter (Use with Coag-Sense® PT2 Adapter Only) |
| AC Input | 100-240V~, 50-60Hz, 0.5A (Mains supply voltage fluctuation: ±10% |
| Power Output | 5.0V, 2.0A |
| Pollution Degree | 2 |
| Overvoltage Category | II |
| Use Circumstance | Indoor only |
| Blood Sample Size | 10-12 μl |
| Communication Port | Micro and Standard USB |
| Size in mm (Height x Width x Depth) | 152 x 100 x 29.5 |
| Weight in g | 315g |
| Equipment Classification | Class II with external power supply. Internally powered when operated with battery. IPX0 rating. |
